Optical Solid State Relay (SSR) with transistor output, featuring 5kV isolation and a 600V output voltage rating. This SPST relay offers a 50mA load current capability and operates from a DC input. Encased in a DIP package, it boasts a compact footprint with dimensions of 4.78mm (L) x 6.4mm (D) x 3.2mm (H). The component operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageDIP
Quick Jump:
Technical Specifications
Panasonic AQY216EH technical specifications.
General
| Package/Case | DIP |
| Depth | 6.4mm |
| Height | 3.2mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 4.78mm |
| Load Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Output Voltage | 600V |
| On-state Resistance-Max | 120R |
| Output Voltage | 600V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | PC Pin |
| Test Voltage | 5kV |
| Throw Configuration | SPST |
| Turn-On Delay Time | 2ms |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY216EH Datasheet
Download the complete datasheet for Panasonic AQY216EH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

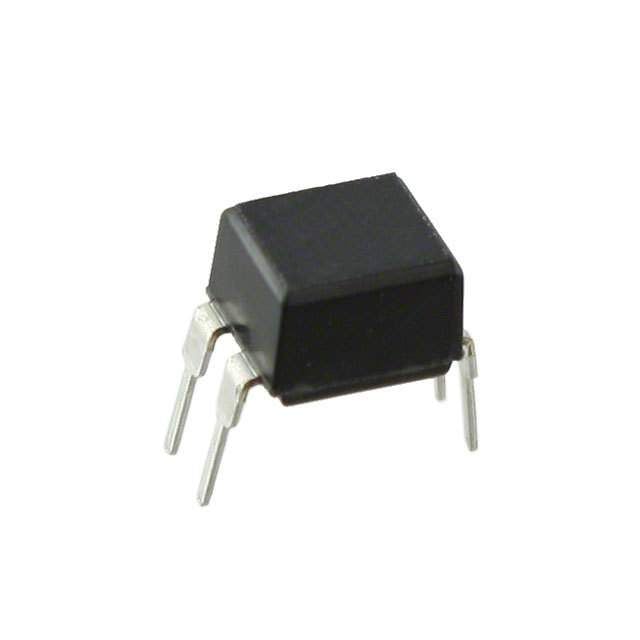

Product Images
