Surface mount transistor output solid state relay featuring 1500V isolation and a 1-channel SPST configuration. This optical SSR offers a maximum output voltage of 350V and a load current capability of 120mA. Operating with DC input, it requires a maximum input voltage of 1.5V and a maximum input current of 50mA. The component is housed in a compact SOP package with gull wing termination, suitable for tape and reel packaging.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY410SX technical specifications.
General
| Package/Case | SOP |
| Forward Current | 850uA |
| Height | 2.1mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Max Power Dissipation | 350mW |
| Mount | Surface Mount |
| On-state Resistance-Max | 25R |
| Output Current | 120mA |
| Output Voltage | 350V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY410SX Datasheet
Download the complete datasheet for Panasonic AQY410SX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

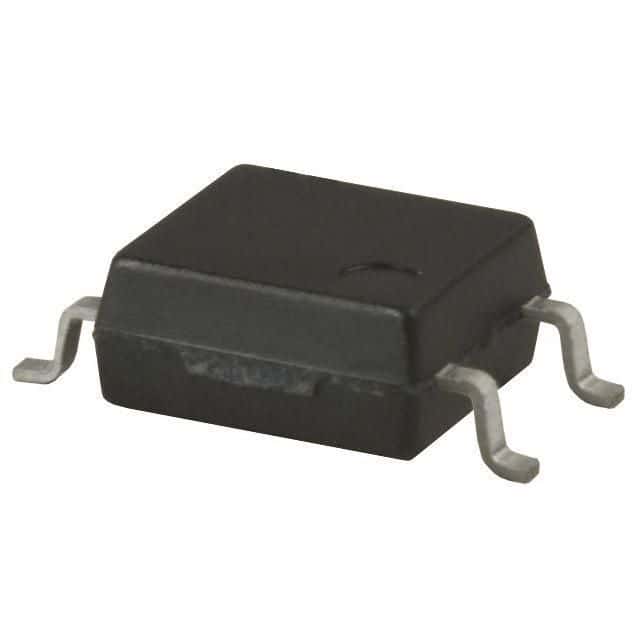

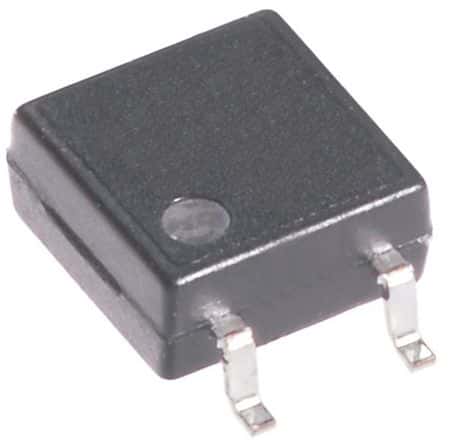

Product Images
