Surface mount, single-pole single-throw (SPST) solid-state relay featuring a transistor output. Offers 5kV isolation voltage and a 400V AC voltage rating with a 120mA load current capacity. Operates with a DC input type requiring 50mA input current. Packaged in a DIP-4 footprint with gull wing termination, measuring 6.4mm x 4.78mm x 2.9mm. RoHS compliant and suitable for operation between -40°C and 85°C.
PackageSMD/SMT
Current Rating120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY414EHA technical specifications.
General
Package/Case
SMD/SMT
Current Rating
120mA
Forward Current
1.4mA
Height
2.9mm
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Length
6.4mm
Load Current
120mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Max Output Voltage
400V
Mount
Surface Mount
On-State Resistance
35R
On-state Resistance-Max
35R
Output Current
120mA
Output Voltage
400V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQY
Termination
Gull Wing
Test Voltage
5kV
Throw Configuration
SPST
Voltage Rating (AC)
400V
Width
4.78mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQY414EHA Datasheet
Download the complete datasheet for Panasonic AQY414EHA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

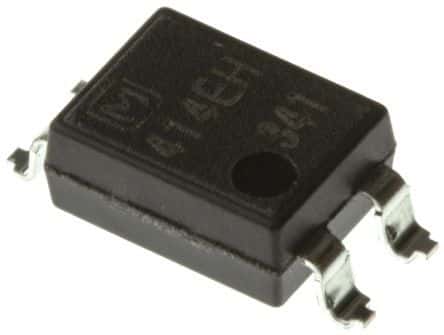

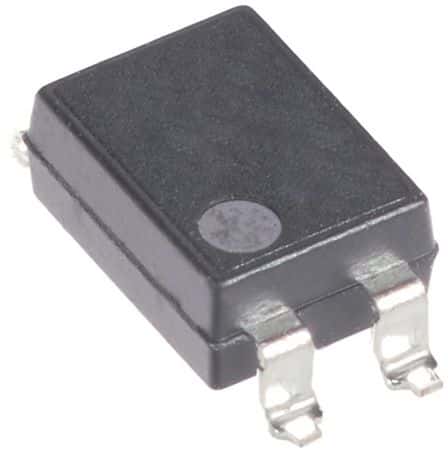

Product Images
