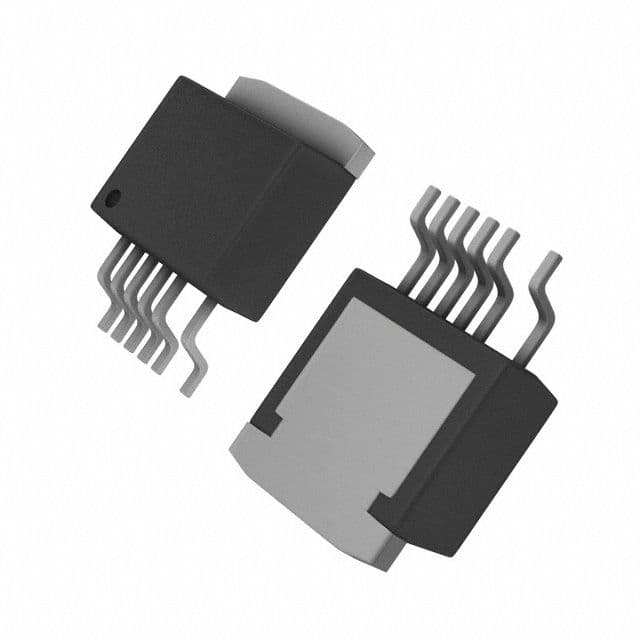

Surface mount switching regulator, voltage-mode DC/DC controller. Features a maximum output current of 3.5A and a maximum output power of 35W, with a single output voltage of 220V. Operates within an input voltage range of 16V to 75V, boasting a maximum switching frequency of 425kHz. Encased in a TO-263-7 package, this component supports a wide operating temperature range from -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power Integrations DPA424R-TL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263-7 |
| Max Input Voltage | 75V |
| Min Input Voltage | 16V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3.5A |
| Output Power | 35W |
| Output Voltage | 220V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | DPA-Switch® |
| RoHS | Not CompliantNo |
