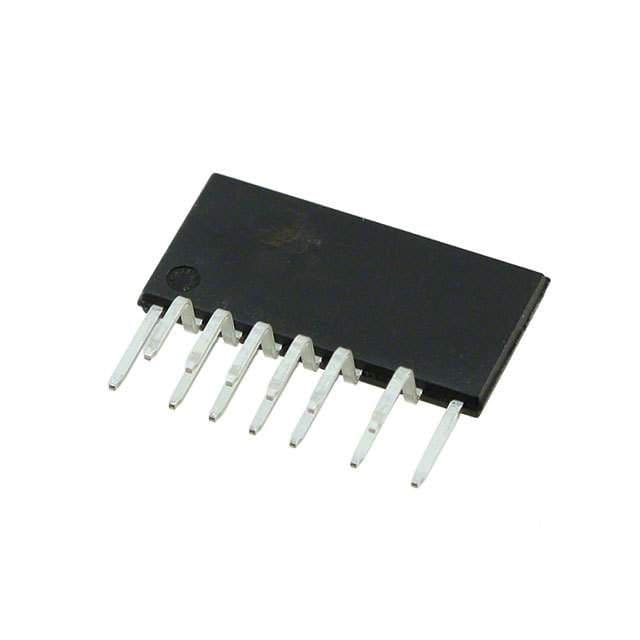

The LCS702HG is a single-output gate driver from Power Integrations. It features a maximum output current of 8.3A and a maximum supply voltage of 15V. The device is designed for through-hole mounting and operates within a temperature range of -40°C to 150°C. The LCS702HG is RoHS compliant and is packaged in a rail/tube format with 30 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power Integrations LCS702HG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Power Integrations LCS702HG technical specifications.
| Package/Case | SIP |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit |
| Interface | On/Off |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10.3A |
| Max Supply Current | 6.5mA |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 11.4V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 8.3A |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HiperLCS™ |
| Supply Current | 4.9mA |
| RoHS | Compliant |
