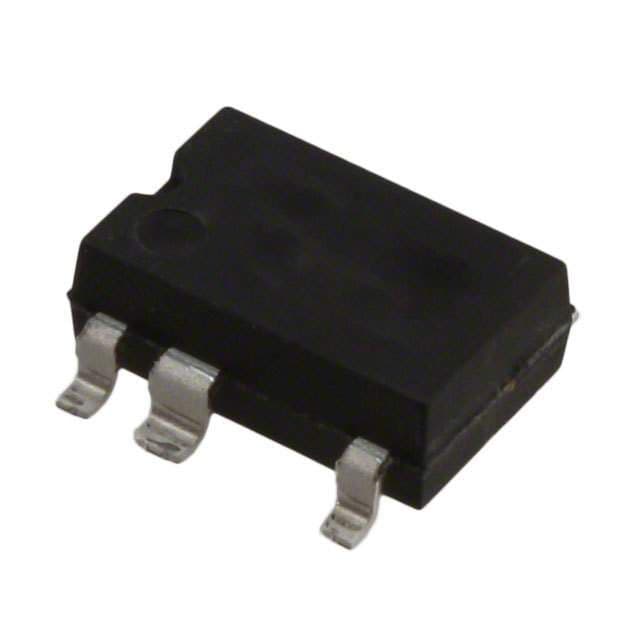

The LNK304G is a surface-mount DC/DC controller from Power Integrations, designed for buck-boost and flyback topologies. It features a 69% maximum duty cycle and fault protection against over temperature and short circuit conditions. The device operates over a temperature range of -40°C to 150°C and is available in a DIP-8 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power Integrations LNK304G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Power Integrations LNK304G technical specifications.
| Package/Case | SMD/SMT |
| Duty Cycle | 69% |
| Fault Protection | Over Temperature, Short Circuit |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | LinkSwitch®-TN |
| Topology | Buck-Boost, Flyback |
| RoHS | Not Compliant |
Download the complete datasheet for Power Integrations LNK304G to view detailed technical specifications.
