Flyback topology analog circuit IC featuring 3 outputs, 8W output power, and 353mA max output current. Operates from 85V to 265V AC input with a 100kHz switching frequency and 54% duty cycle. Includes over-temperature and short-circuit fault protection. Packaged in a DIP through-hole configuration, this component offers a max operating temperature of 150°C.
Frequency100kHz
PackageDIP
Power8W
Quick Jump:
Technical Specifications
Power Integrations LNK625PG technical specifications.
General
| Package/Case | DIP |
| Duty Cycle | 54% |
| Fault Protection | Over Temperature, Short Circuit |
| Frequency | 100kHz |
| Max Duty Cycle | 54% |
| Max Input Voltage (AC) | 265V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 353mA |
| Max Output Voltage | 700V |
| Max Power Dissipation | 13.5W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Number of Outputs | 3 |
| Operating Supply Current | 480uA |
| Output Current | 353mA |
| Output Power | 8W |
| Output Voltage | 6V |
| Packaging | Rail/Tube |
| Power Dissipation | 6.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LinkSwitch®-CV |
| Termination | Through Hole |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Power Integrations LNK625PG Datasheet
Download the complete datasheet for Power Integrations LNK625PG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

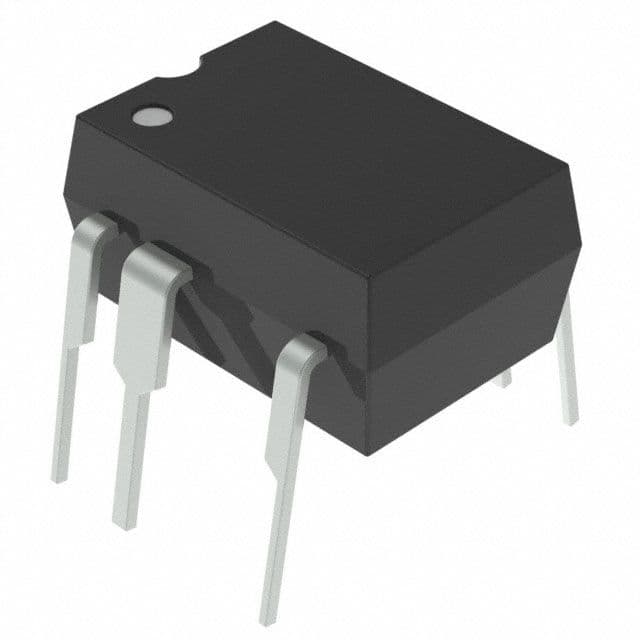

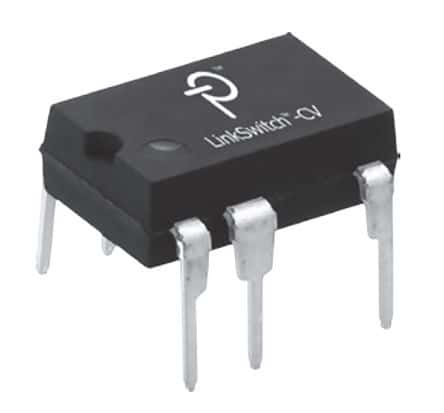

Product Images
