Power Integrations
LQA20T300C
Rectifier Diode, 1 Phase, 2 Element, 10A, 300V V(RRM), Silicon, TO-220AB, GREEN PACKAGE-3
PackageTO-220AB
MountingThrough Hole
Power52W
Quick Jump:
Technical Specifications
Power Integrations LQA20T300C technical specifications.
General
Average Rectified Current
10A
Package/Case
TO-220AB
Forward Current
20A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
300V
Max Reverse Current
25uA
Max Reverse Voltage (DC)
300V
Max Surge Current
80A
Mount
Through Hole
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
350A
Power Dissipation
52W
Radiation Hardening
No
Reverse Recovery Time
12.6ns
Reverse Voltage
300V
RoHS Compliant
Yes
Series
Qspeed™
Compliance
RoHS
Compliant
Datasheet
Power Integrations LQA20T300C Datasheet
Download the complete datasheet for Power Integrations LQA20T300C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

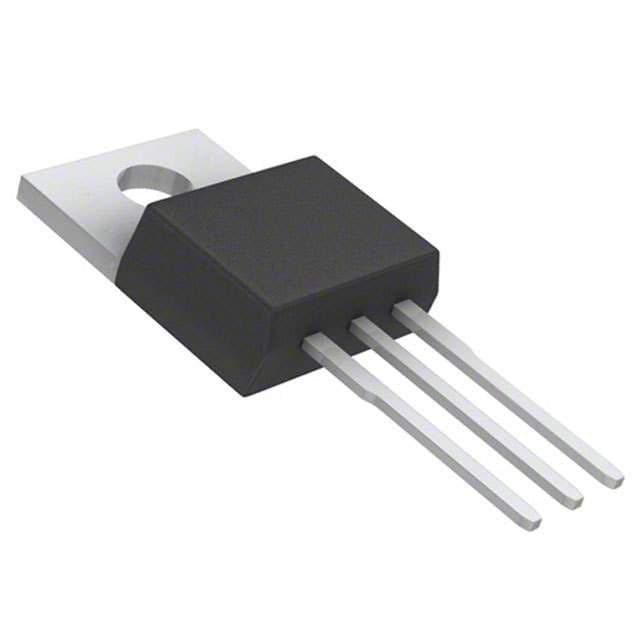

Product Images
