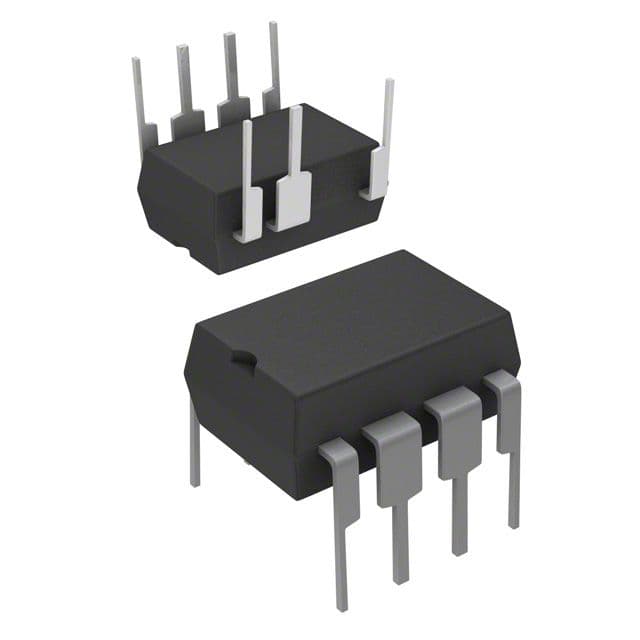

The TNY265PN is a DC/DC controller from Power Integrations with an adjustable output voltage of 5.8V and a maximum output power of 7.5W. It operates within a temperature range of -40°C to 150°C and has a maximum power dissipation of 11W. The device is packaged in a DIP-8 package and is compliant with RoHS regulations. It is suitable for use in applications where a high level of efficiency and reliability is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power Integrations TNY265PN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Duty Cycle | 68% |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 11W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Number of Outputs | 1 |
| Output Current | 295mA |
| Output Power | 7.5W |
| Output Type | Adjustable |
| Output Voltage | 5.8V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TinySwitch®-II |
| Supply Current | 245uA |
| Topology | Flyback |
| RoHS | Compliant |
