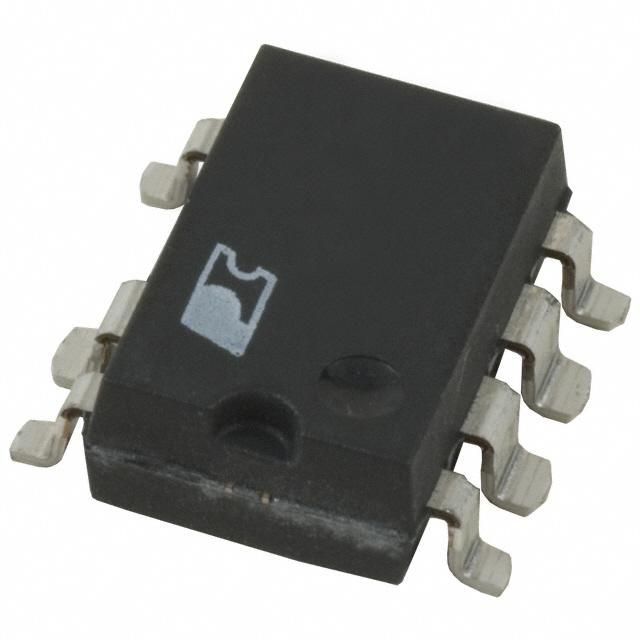

Surface mount switching regulator with a 5.8V output voltage, operating from 85V to 265V AC input. Features a maximum switching frequency of 140kHz and a maximum duty cycle of 68%. Integrated fault protection includes over-temperature and short-circuit capabilities. This lead-free, RoHS-compliant component is packaged in PDSO7 and designed for flyback topology.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power Integrations TNY266GN-TL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Duty Cycle | 65% |
| Fault Protection | Over Temperature, Short Circuit |
| Lead Free | Lead Free |
| Max Duty Cycle | 68% |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Mount | Surface Mount |
| Output Voltage | 5.8V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | TinySwitch®-II |
| Supply Current | 265uA |
| Topology | Flyback |
| RoHS | Compliant |
Download the complete datasheet for Power Integrations TNY266GN-TL to view detailed technical specifications.
