Power Integrations
TNY274GN
Switching Regulator, Current-mode, 0.273A, 140kHz Switching Freq-Max, PDSO7, SMD-8/7
PackageSMD/SMT
Voltage700V
MountingSurface Mount
Power8.5W
Quick Jump:
Technical Specifications
Power Integrations TNY274GN technical specifications.
General
Package/Case
SMD/SMT
Height
3.68mm
Lead Free
Lead Free
Length
9.83mm
Max Duty Cycle
65%
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
11W
Max Supply Voltage (AC)
265V
Min Supply Voltage (AC)
85V
Mount
Surface Mount
Nominal Supply Current
275uA
Number of Outputs
1
Output Power
8.5W
Output Type
Adjustable
Output Voltage
12V
Package Quantity
50
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
TinySwitch®-III
Topology
Flyback
Voltage
700V
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Power Integrations TNY274GN Datasheet
Download the complete datasheet for Power Integrations TNY274GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

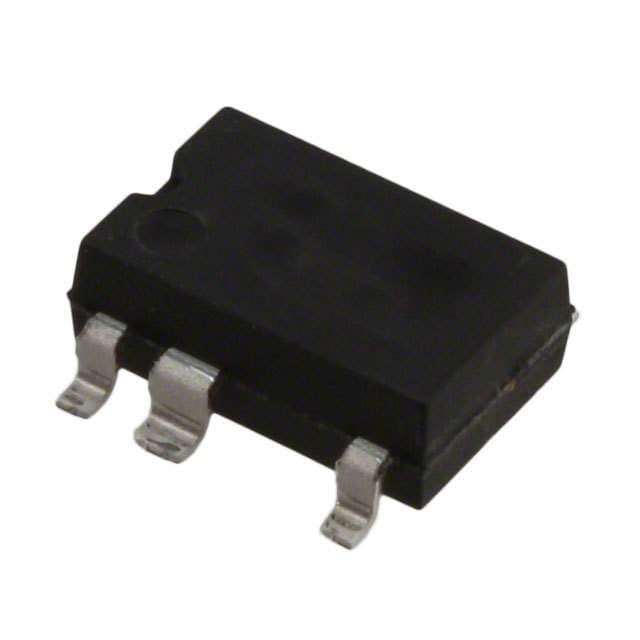

Product Images
