High-performance switching regulator IC for DC/DC conversion. Features current-mode control, a maximum switching frequency of 140kHz, and a maximum output power of 11.5W. Operates from 85VAC to 265VAC with a maximum duty cycle of 65%. Includes integrated fault protection for over-voltage, over-temperature, and short-circuit conditions. Packaged in a lead-free, RoHS-compliant DIP package for through-hole mounting.
PackageDIP
Current295uA
MountingThrough Hole
Power11.5W
Quick Jump:
Technical Specifications
Power Integrations TNY275PN technical specifications.
General
Package/Case
DIP
Duty Cycle
65%
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Height
3.68mm
Lead Free
Lead Free
Length
9.83mm
Max Duty Cycle
65%
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
15W
Max Supply Voltage (AC)
265V
Min Supply Voltage (AC)
85V
Mount
Through Hole
Number of Outputs
1
Output Power
11.5W
Output Type
Adjustable
Output Voltage
12V
Package Quantity
50
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
TinySwitch®-III
Supply Current
295uA
Topology
Flyback
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Power Integrations TNY275PN Datasheet
Download the complete datasheet for Power Integrations TNY275PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

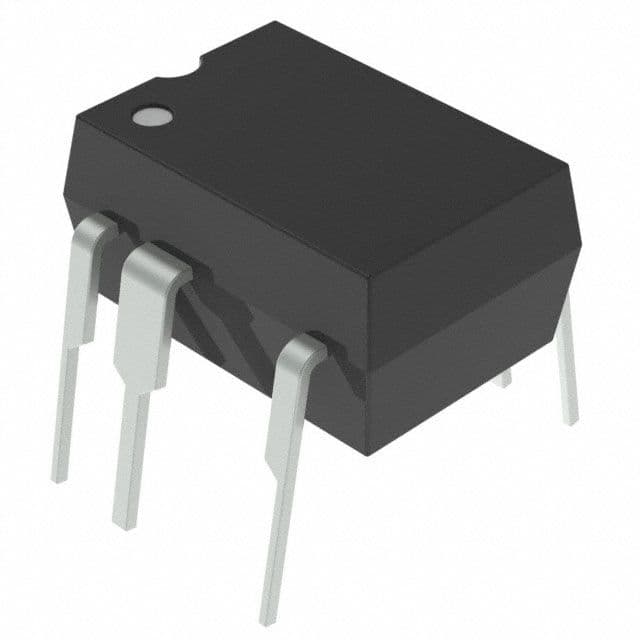

Product Images
