PackagePDIP
Current630uA
MountingThrough Hole
Power28.5W
Quick Jump:
Technical Specifications
Power Integrations TNY280PG technical specifications.
General
Package/Case
PDIP
Duty Cycle
65%
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Max Duty Cycle
65%
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
36.5W
Max Supply Voltage (AC)
265V
Min Supply Voltage (AC)
85V
Mount
Through Hole
Number of Outputs
1
Output Current
1A
Output Power
28.5W
Output Voltage
12V
Package Quantity
50
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
TinySwitch®-III
Supply Current
630uA
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Power Integrations TNY280PG Datasheet
Download the complete datasheet for Power Integrations TNY280PG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

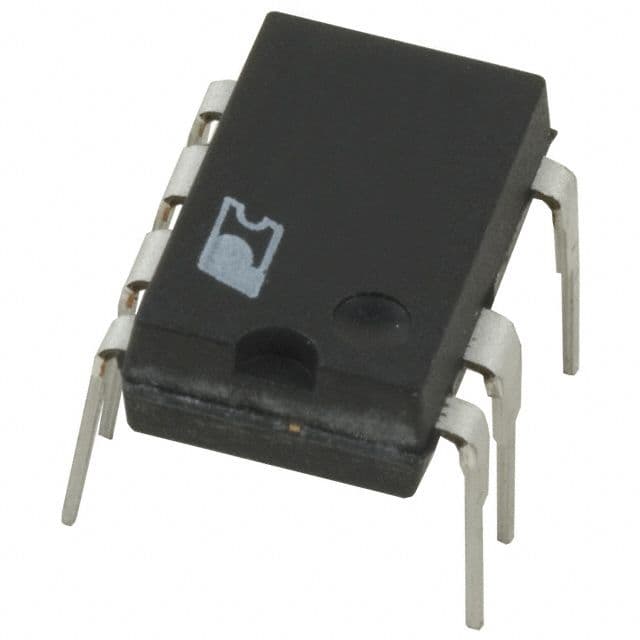

Product Images
