Surface mount analog IC for flyback topology, featuring 67% duty cycle and integrated over-voltage, over-temperature, and short-circuit fault protection. Operates across a -40°C to 150°C temperature range with a maximum power dissipation of 8.5W. Packaged in SO format, this RoHS compliant component is supplied in cut tape.
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Power Integrations TNY285DG-TL technical specifications.
General
| Package/Case | SO |
| Duty Cycle | 67% |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 8.5W |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | TinySwitch®-4 |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Power Integrations TNY285DG-TL Datasheet
Download the complete datasheet for Power Integrations TNY285DG-TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

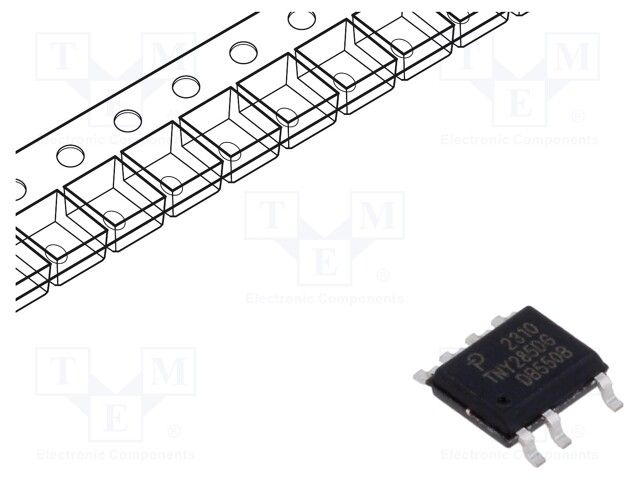

Product Images
