PackageSO
Current470uA
MountingSurface Mount
Power19W
Quick Jump:
Technical Specifications
Power Integrations TNY286DG technical specifications.
General
Package/Case
SO
Max Duty Cycle
67%
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
19W
Max Supply Voltage
265V
Min Supply Voltage
85V
Mount
Surface Mount
Number of Outputs
1
Output Power
19W
Output Voltage
265V
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TinySwitch®-4
Supply Current
470uA
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Power Integrations TNY286DG Datasheet
Download the complete datasheet for Power Integrations TNY286DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

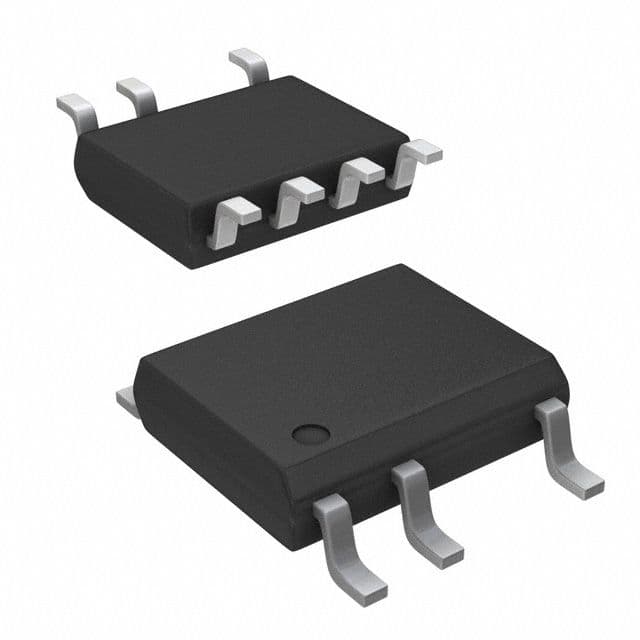

Product Images
