PackageDIP
MountingThrough Hole
Power28W
Quick Jump:
Technical Specifications
Power Integrations TNY288PG technical specifications.
General
Package/Case
DIP
Duty Cycle
67%
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Max Duty Cycle
67%
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
16W
Max Supply Voltage
265V
Min Supply Voltage
85V
Mount
Through Hole
Number of Outputs
1
Operating Supply Current
650uA
Output Power
28W
Output Voltage
265V
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TinySwitch®-4
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Power Integrations TNY288PG Datasheet
Download the complete datasheet for Power Integrations TNY288PG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

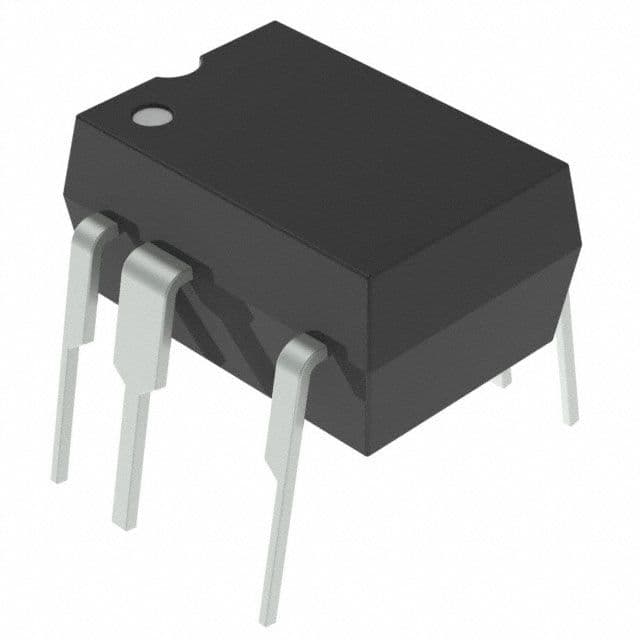

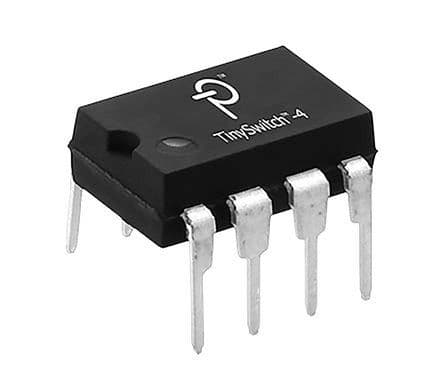

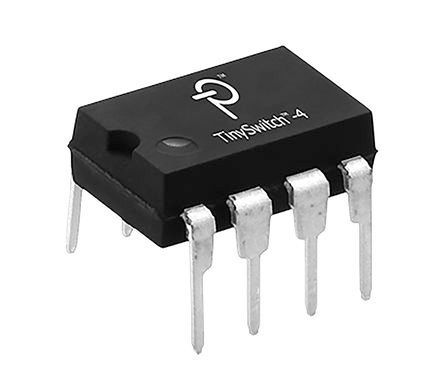

Product Images
