Analog circuit IC for flyback topology, featuring 1 output and a maximum output power of 36.5W. Operates with AC input voltages from 85V to 265V, supporting a maximum duty cycle of 67%. Includes integrated fault protection for over voltage, over temperature, and short circuit conditions. Packaged in a surface-mount SOP (PDSO11) with a maximum operating temperature of 150°C.
PackageSOP
MountingSurface Mount
Power36.5W
Quick Jump:
Technical Specifications
Power Integrations TNY290KG technical specifications.
General
Package/Case
SOP
Duty Cycle
67%
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Max Duty Cycle
67%
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
28W
Max Supply Voltage
265V
Min Supply Voltage
85V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Current
930uA
Output Power
36.5W
Output Voltage
265V
Package Quantity
48
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TinySwitch®-4
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Power Integrations TNY290KG Datasheet
Download the complete datasheet for Power Integrations TNY290KG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

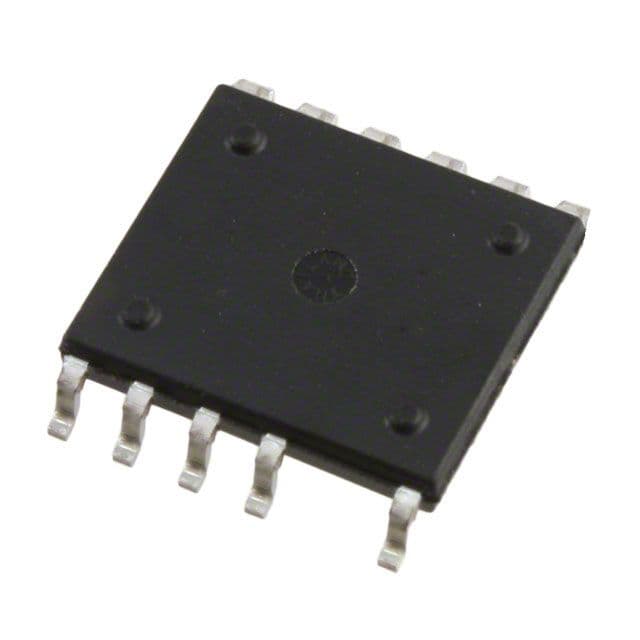

Product Images
