Power Integrations
TNY377PN
Switching Regulator, Current-mode, 0.626A, 280kHz Switching Freq-Max, PDIP7, LEAD FREE, PLASTIC, MS-001AB, DIP-8/7
Frequency264kHz
PackageDIP
Current570uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Power Integrations TNY377PN technical specifications.
General
| Package/Case | DIP |
| Frequency | 264kHz |
| Max Duty Cycle | 65% |
| Max Input Voltage (AC) | 265V |
| Max Input Voltage | 265V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.4A |
| Max Power Dissipation | 28W |
| Max Supply Voltage | 9V |
| Min Supply Voltage | -300mV |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 1.4A |
| Output Power | 28W |
| Output Voltage | 700V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Supply Current | 570uA |
| Termination | Through Hole |
Compliance
| RoHS | Not Compliant |
Datasheet
Power Integrations TNY377PN Datasheet
Download the complete datasheet for Power Integrations TNY377PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

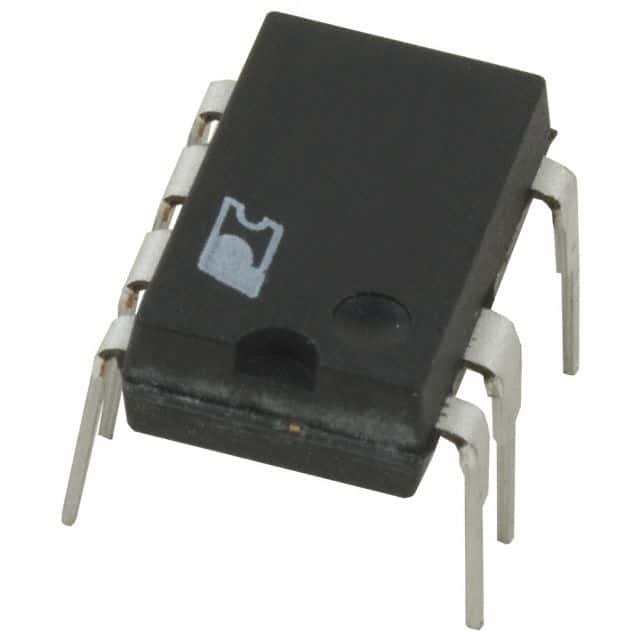

Product Images
