Power Integrations
TOP232PN
Switching Regulator, Voltage-mode, 0.8A, 140kHz Switching Freq-Max, CMOS, PDIP7, 0.300 INCH, PLASTIC, DIP-8/7
PackageDIP
Current1.5mA
Quick Jump:
Technical Specifications
Power Integrations TOP232PN technical specifications.
General
Package/Case
DIP
Lead Free
Lead Free
Max Duty Cycle
78%
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
15W
Max Supply Voltage (AC)
265V
Min Supply Voltage (AC)
85V
Output Voltage
12V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
TOPSwitch®-FX
Supply Current
1.5mA
Compliance
RoHS
Compliant
Datasheet
Power Integrations TOP232PN Datasheet
Download the complete datasheet for Power Integrations TOP232PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

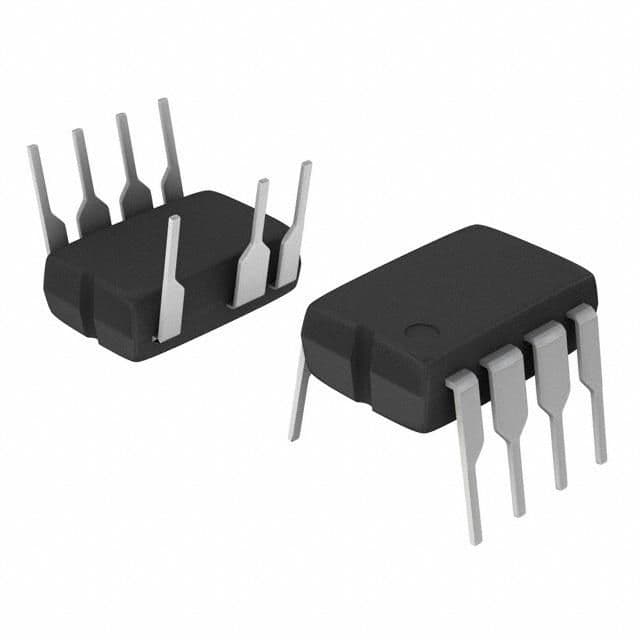

Product Images
