Power Integrations
TOP242YN
Switching Regulator, Voltage-mode, 0.72A, 140kHz Switching Freq-Max, CMOS, PZFM6, TO-220, 7/6 PIN
Switching Regulator, Voltage-mode, 0.72A, 140kHz Switching Freq-Max, CMOS, PZFM6, TO-220, 7/6 PIN
PackageTO-220-7
Current1.6mA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Power Integrations TOP242YN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Power Integrations TOP242YN technical specifications.
General
| Package/Case | TO-220-7 |
| Lead Free | Lead Free |
| Max Duty Cycle | 83% |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 22W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Output Voltage | 12V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TOPSwitch®-GX |
| Supply Current | 1.6mA |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Power Integrations TOP242YN Datasheet
Download the complete datasheet for Power Integrations TOP242YN to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

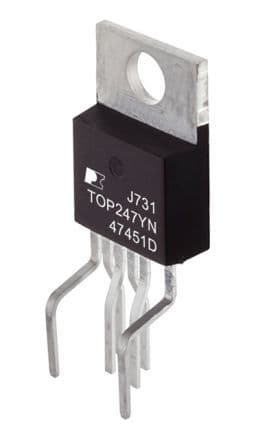

Product Images
