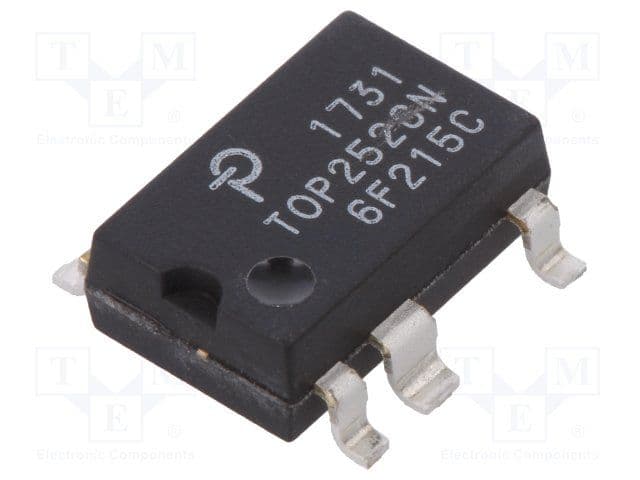

Surface mount analog circuit IC featuring a single function and CMOS technology. Operates with a maximum input voltage of 265V AC and a frequency of 66kHz. Delivers a maximum output current of 680mA at 700V, with a maximum power dissipation of 21W. Packaged in an 8-pin PDSO (SMD-8/7) with dimensions of 9.83mm length, 6.6mm width, and 3.68mm height. RoHS compliant and suitable for operation between -40°C and 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power Integrations TOP252GN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Frequency | 66kHz |
| Height | 3.68mm |
| Length | 9.83mm |
| Max Input Voltage (AC) | 265V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 460mA |
| Max Output Voltage | 700V |
| Max Power Dissipation | 21W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 680mA |
| Output Voltage | 700V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 6W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TOPSwitch®-HX |
| Termination | SMD/SMT |
| Width | 6.6mm |
| RoHS | Compliant |
