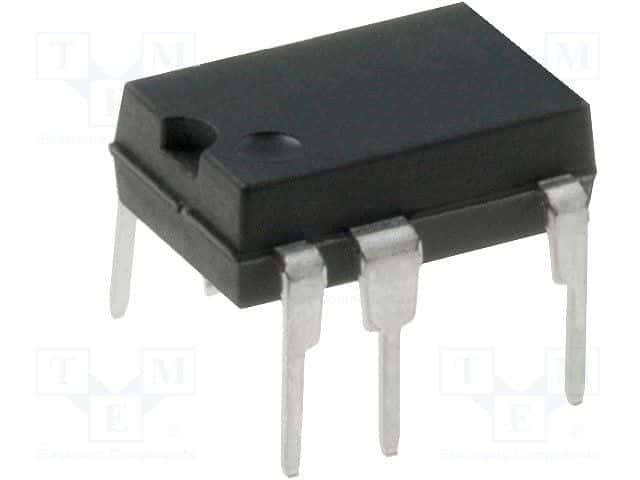

Through-hole mounted analog circuit IC featuring a single function and CMOS technology, housed in a PDIP package. Operates with a maximum frequency of 66kHz, a maximum duty cycle of 78%, and supports AC input voltages from 85V to 265V. Delivers up to 700V output voltage and 680mA output current, with a maximum output power of 15W. Offers a wide operating temperature range from -40°C to 150°C and a maximum power dissipation of 21W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Power Integrations TOP252PN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Frequency | 66kHz |
| Height | 3.68mm |
| Length | 9.83mm |
| Max Duty Cycle | 78% |
| Max Input Voltage (AC) | 265V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 460mA |
| Max Output Voltage | 700V |
| Max Power Dissipation | 21W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Max Supply Voltage | 9V |
| Min Supply Voltage | -300mV |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 680mA |
| Output Power | 15W |
| Output Voltage | 700V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 6W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TOPSwitch®-HX |
| Termination | Through Hole |
| Width | 6.6mm |
| RoHS | Compliant |
