Flyback topology analog circuit IC featuring 1 function and CMOS technology. Designed for surface mount installation in an SOP package, it operates within an 85V to 265V AC input voltage range and offers a maximum output power of 50W with 6.88A output current. Integrated fault protection includes over voltage, over temperature, and short circuit capabilities, with a maximum duty cycle of 83%. Operating temperature range spans from -40°C to 150°C, and the component is RoHS compliant.
PackageSOP
MountingSurface Mount
Power50W
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Power Integrations TOP268KG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Power Integrations TOP268KG technical specifications.
General
| Package/Case | SOP |
| Duty Cycle | 78% |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit |
| Max Duty Cycle | 83% |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 73W |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Max Supply Voltage | 265V |
| Min Supply Voltage | 85V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 6.88A |
| Output Power | 50W |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TOPSwitch®-JX |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Power Integrations TOP268KG Datasheet
Download the complete datasheet for Power Integrations TOP268KG to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

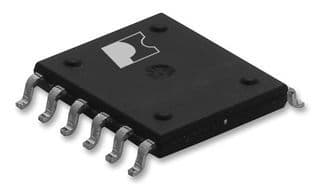

Product Images
