Technical Specifications
Power Integrations TOP270EG technical specifications.
General
Package/Case
SIP
Duty Cycle
78%
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Max Duty Cycle
78%
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
190W
Max Supply Voltage (AC)
265V
Min Supply Voltage (AC)
85V
Number of Outputs
1
Operating Supply Current
2.1mA
Output Power
140W
Output Voltage
19V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TOPSwitch®-JX
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Power Integrations TOP270EG Datasheet
Download the complete datasheet for Power Integrations TOP270EG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

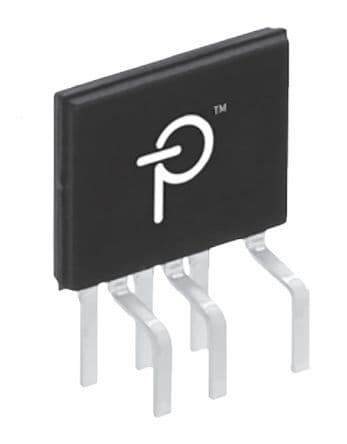

Product Images
