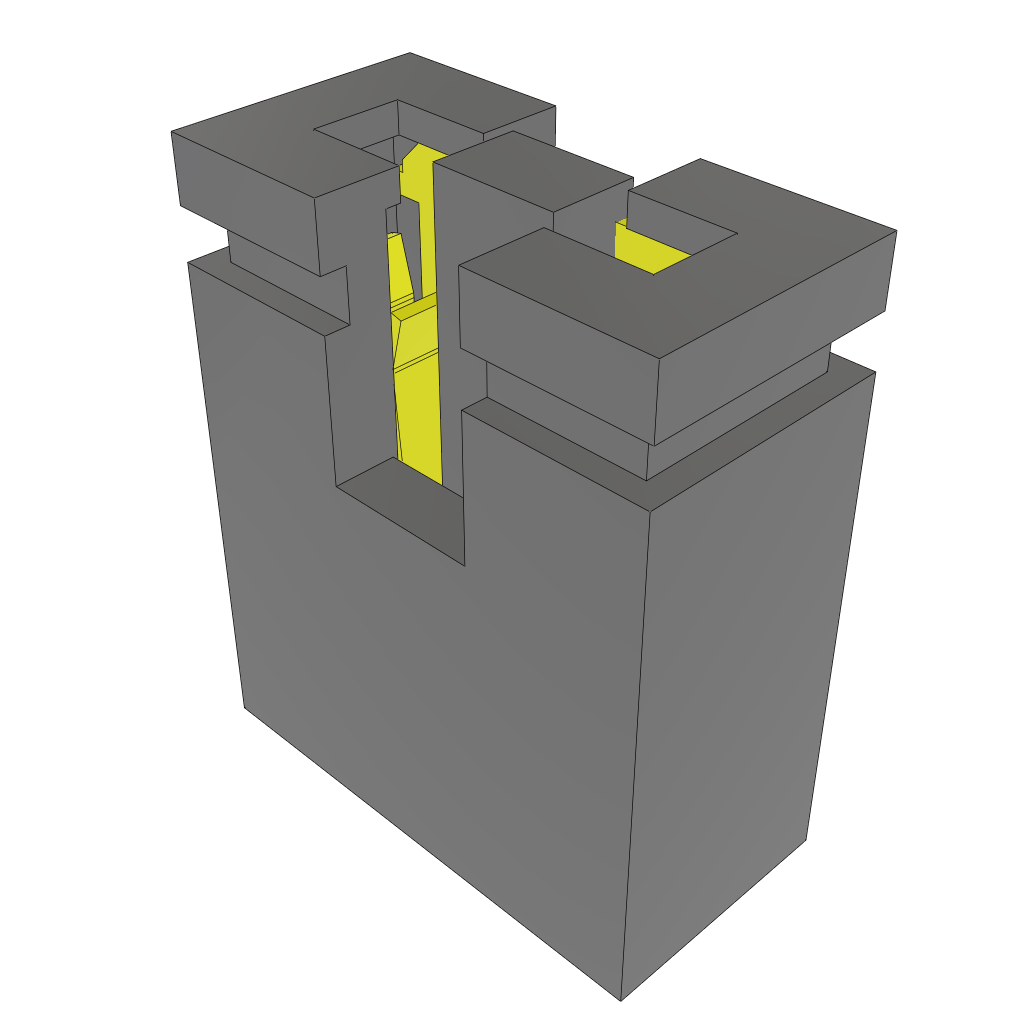

Two-position, single-row straight shunt jumper with 2.54mm pitch. Features gold-plated bronze contacts and a black housing with UL94 V-0 flammability rating. Operates within a temperature range of -55°C to 125°C, with a current rating of 4.3A and voltage rating of 450V. Bulk packaged for efficient integration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec SNT-100-BK-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 4.3A |
| Depth | 2.54mm |
| Flammability Rating | UL94 V-0 |
| Height | 0.24inch |
| Housing Color | Black |
| Length | 5.08mm |
| Max Current Rating | 2.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SNT |
| Voltage Rating | 450V |
| RoHS | Compliant |
Download the complete datasheet for Samtec SNT-100-BK-G to view detailed technical specifications.
