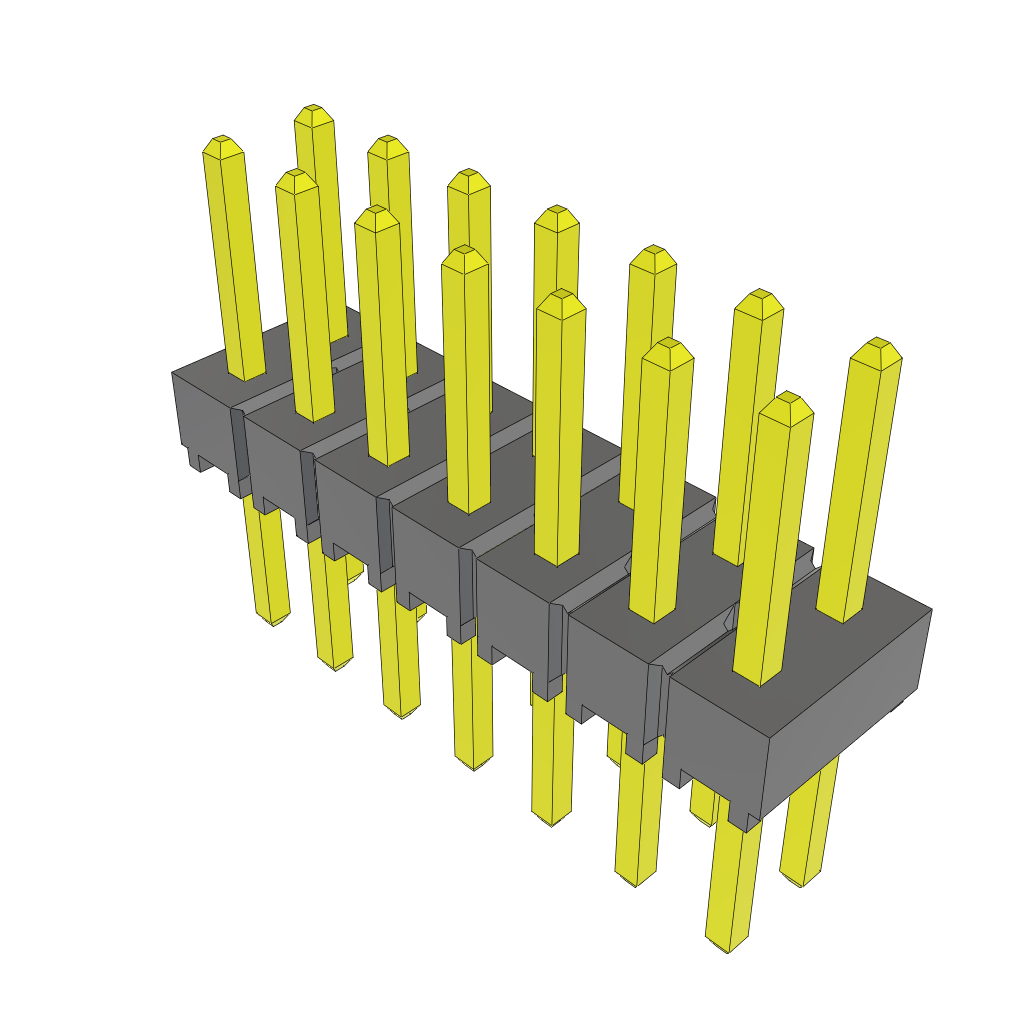

14-position unshrouded header with a 2.54mm pitch, featuring straight, top-entry, thru-hole mounting for solder termination. This male connector boasts gold-plated bronze male pin contacts, a 7.6A max current rating, and a 550V AC max voltage rating. Operating across a -55°C to 125°C temperature range, it offers a 0.23-inch contact mating length and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TSW-107-08-G-D technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Mating Length | 0.23inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Depth | 5.08mm |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 17.78mm |
| Max Current Rating | 7.6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | TSW |
| Termination | Solder |
| Width | 5.08mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSW-107-08-G-D Datasheet
Download the complete datasheet for Samtec TSW-107-08-G-D to view detailed technical specifications.
