Audio magnetic transducer with a 5V voltage rating, operating between -20°C and 60°C. Features a 2.73kHz frequency response and 80mA operating supply current. This through-hole component has a 4.5mm height and PC pin terminations, supplied on tape and reel. It is lead-free.
Frequency2.73kHz
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Soberton GT-0905A technical specifications.
General
| Frequency | 2.73kHz |
| Height | 4.5mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Supply Current | 80mA |
| Packaging | Tape and Reel |
| Series | GT |
| Termination | PC Pins |
| Voltage Rating | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Soberton GT-0905A Datasheet
Download the complete datasheet for Soberton GT-0905A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

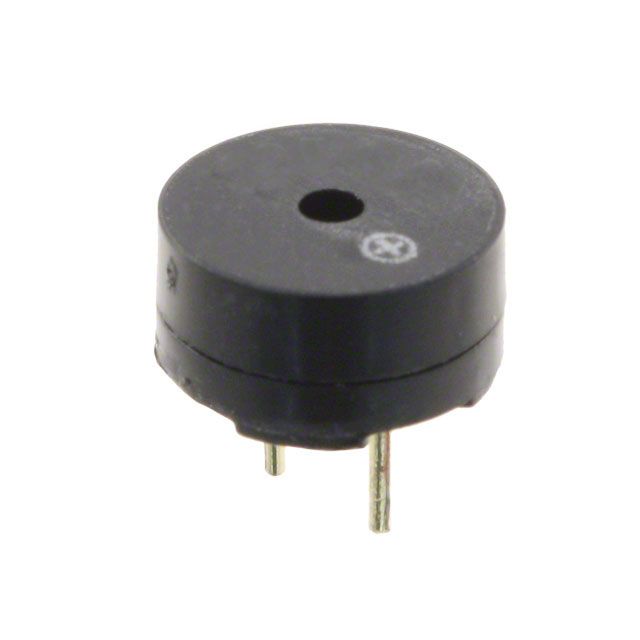

Product Images
