Audio magnetic transducer, 9mm diameter, operating at 4-6V with a 5V rating. Features a 3.2kHz frequency and 3.1kHz self-resonant frequency. Designed for through-hole mounting with PC pin termination. Operates within a -20°C to 60°C temperature range, consuming 80mA of supply current. Lead-free construction.
Frequency3.2kHz
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Soberton GT-0950RP3 technical specifications.
General
| Diameter | 9mm |
| Frequency | 3.2kHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Supply Current | 80mA |
| Packaging | Bulk |
| Self Resonant Frequency | 3.1kHz |
| Series | GT |
| Termination | PC Pins |
| Voltage Rating | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Soberton GT-0950RP3 Datasheet
Download the complete datasheet for Soberton GT-0950RP3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

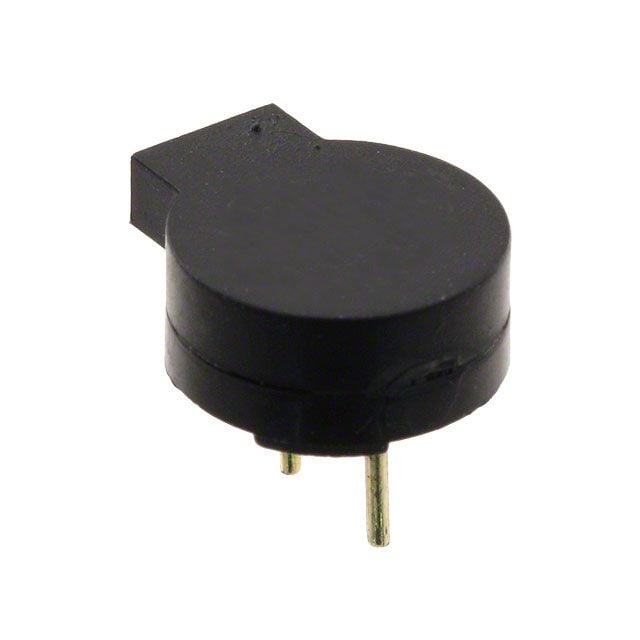

Product Images
