Piezo buzzer audio indicator with a 4kHz frequency and 12V voltage rating. Features a compact 7.5mm height, through-hole mount with PC pin termination, and DC input type. Operates within a -20°C to 70°C temperature range, consuming 7mA operating supply current. This lead-free component is washable and supplied in tape and reel packaging.
Frequency4kHz
Voltage Rating12V
MountingThrough Hole
Quick Jump:
Technical Specifications
Soberton PB-1408-1 technical specifications.
General
| Frequency | 4kHz |
| Height | 7.5mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Supply Current | 7mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Series | PB |
| Termination | PC Pins |
| Voltage Rating | 12V |
| Washable | Yes |
Compliance
| RoHS | Not Compliant |
Datasheet
Soberton PB-1408-1 Datasheet
Download the complete datasheet for Soberton PB-1408-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

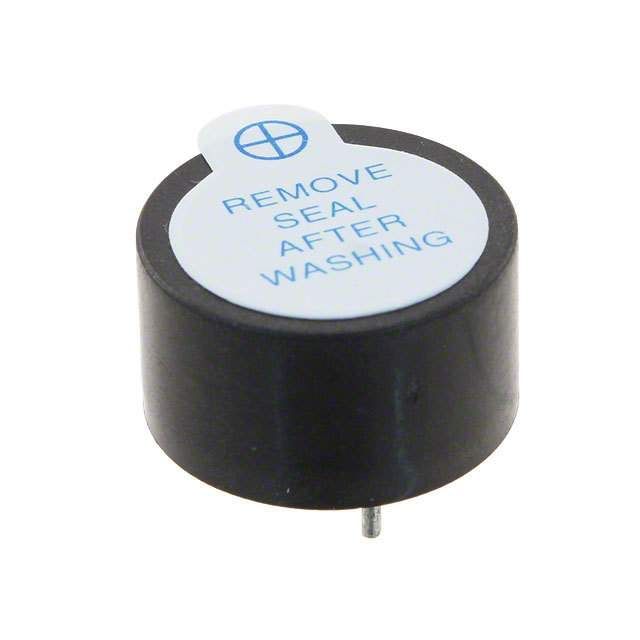

Product Images
