Surface mount audio magnetic transducer with a 5V voltage rating. Features a 2.73kHz frequency and self-resonant frequency. Operates within a -30°C to 70°C temperature range, drawing 100mA operating supply current. Terminated for solder connection and supplied in cut tape packaging.
Frequency2.73kHz
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Soberton ST-03CH technical specifications.
General
| Frequency | 2.73kHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Operating Supply Current | 100mA |
| Packaging | Cut Tape |
| Self Resonant Frequency | 2.73kHz |
| Series | ST |
| Termination | Solder |
| Voltage Rating | 5V |
Compliance
| RoHS | Not Compliant |
Datasheet
Soberton ST-03CH Datasheet
Download the complete datasheet for Soberton ST-03CH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

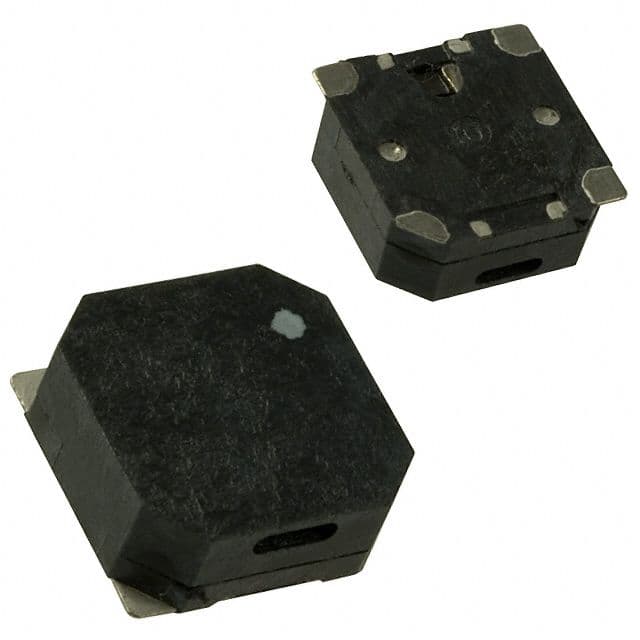

Product Images
