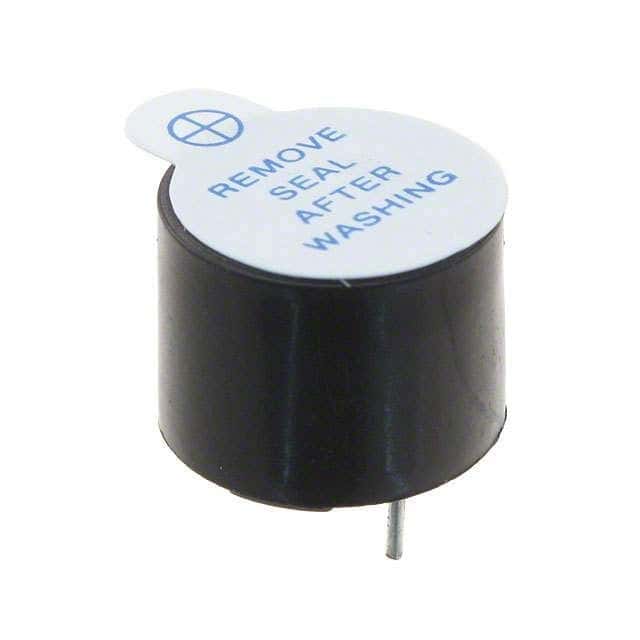

Audio magnetic transducer with a 12mm diameter, designed for through-hole mounting with PC pin termination. Operates within a voltage rating of 5V, drawing a maximum of 40mA. Features a frequency response of 2.3kHz, with a self-resonant frequency also at 2.3kHz. Suitable for applications within a temperature range of -20°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Soberton WST-1205S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Diameter | 12mm |
| Frequency | 2.3kHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Supply Current | 40mA |
| Packaging | Bulk |
| Self Resonant Frequency | 2.3kHz |
| Series | WST |
| Termination | PC Pins |
| Voltage Rating | 5V |
| RoHS | Not Compliant |
