Through-hole mounted audio magnetic transducer operating at 5V, with a frequency response of 2.3kHz. Features a maximum operating temperature of 60°C and a minimum of -20°C, drawing a maximum operating supply current of 30mA. Terminated with PC pins and supplied in tray packaging.
Frequency2.3kHz
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Soberton WST-1206UX technical specifications.
General
| Frequency | 2.3kHz |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Supply Current | 30mA |
| Packaging | Tray |
| Series | WST |
| Termination | PC Pins |
| Voltage Rating | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Soberton WST-1206UX Datasheet
Download the complete datasheet for Soberton WST-1206UX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

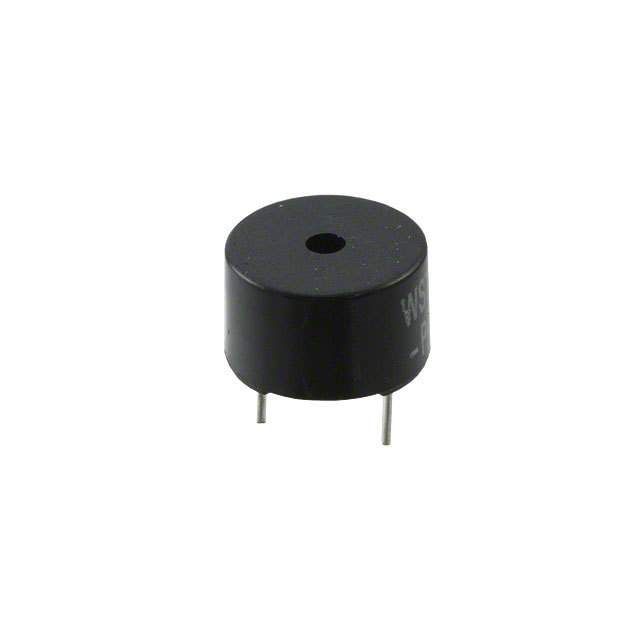

Product Images
