1.5KE200A

Datasheet

TVS Diode 1.5kW 171V Unidirectional DO-201

Stmicroelectronics

1.5KE200A

Name: 1.5KE200A Stmicroelectronics
Brand: Stmicroelectronics
SKU: 1.5KE200A

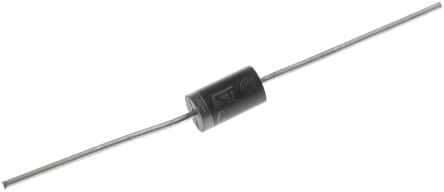

TVS Diode 1.5kW 171V Unidirectional DO-201

Unidirectional TVS Diode for surge suppression, featuring a 1.5kW peak pulse power rating and 200V DC rated voltage. This component offers a 171V reverse standoff voltage and a clamping voltage of 353V, with a maximum breakdown voltage of 210V. Encased in a DO-201 package with through-hole termination, it operates within a temperature range of -65°C to 175°C and exhibits a low leakage current of 1µA.

PackageDO-201

Capacitance675pF

MountingThrough Hole

PolarityUnidirectional

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

Stmicroelectronics 1.5KE200A technical specifications.

General

Capacitance	675pF
Package/Case	DO-201
Clamping Voltage	353V
Clamping Voltage-Max	274V
Diameter	5.3mm
Diode Type	ZENER
Direction	Unidirectional
Height	5.3mm
Lead Free	Lead Free
Leakage Current	1uA
Length	9.5mm
Max Breakdown Voltage	210V
Min Breakdown Voltage	190V
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Max Power Dissipation	1.5kW
Max Reverse Leakage Current	1uA
Max Surge Current	1mA
Mount	Through Hole
Number of Elements	1
Number of Unidirectional Channels	1
Operating Supply Voltage	171V
Package Quantity	600
Packaging	Tape and Reel
Peak Pulse Current	28A
Peak Pulse Power	1.5kW
Polarity	Unidirectional
Power Dissipation	1.5kW
Power Line Protection	No
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	190V
Reverse Standoff Voltage	171V
RoHS Compliant	Yes
Series	1.5KE, TRANSIL™
Termination	Through Hole
DC Rated Voltage	200V
Width	5.3mm
