STMICROELECTRONICS

1.5KE33CA

Datasheet

TVS Diode Bi-Dir 33V 1.5kW DO-201 Through Hole

Stmicroelectronics

1.5KE33CA

Name: 1.5KE33CA Stmicroelectronics
Brand: Stmicroelectronics
SKU: 1.5KE33CA

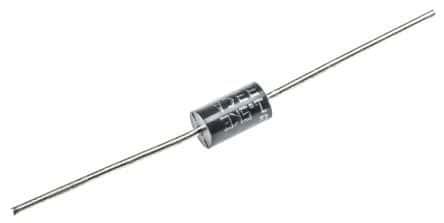

TVS Diode Bi-Dir 33V 1.5kW DO-201 Through Hole

Bidirectional transient voltage suppressor diode with a 1.5kW peak pulse power rating. Features a 28.2V reverse standoff voltage and 33V DC rated voltage. Offers a clamping voltage of 59V (max 45.7V) and a low leakage current of 1uA. This single-channel ZENER diode is housed in a DO-201 package with through-hole mounting and tin-matte contact plating. Operating temperature range is -65°C to 175°C.

PackageDO-201

Capacitance2.7nF

MountingThrough Hole

PolarityBidirectional

Quick Jump:

Technical Specifications

Stmicroelectronics 1.5KE33CA technical specifications.

General

Capacitance	2.7nF
Package/Case	DO-201
Clamping Voltage	59V
Clamping Voltage-Max	45.7V
Contact Plating	Tin, Matte
Diameter	5.3mm
Diode Type	ZENER
Direction	Bidirectional
Height	5.3mm
Lead Free	Lead Free
Leakage Current	1uA
Length	9.5mm
Max Breakdown Voltage	34.7V
Min Breakdown Voltage	31.4V
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Max Power Dissipation	1.5kW
Max Repetitive Reverse Voltage (Vrrm)	28.2V
Max Reverse Leakage Current	1uA
Max Surge Current	1mA
Mount	Through Hole
Number of Bidirectional Channels	1
Number of Channels	1
Number of Elements	1
Operating Supply Voltage	28.2V
Package Quantity	600
Packaging	Tape and Reel
Peak Pulse Current	169A
Peak Pulse Power	1.5kW
Polarity	Bidirectional
Power Dissipation	1.5kW
Power Line Protection	No
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	31.4V
Reverse Standoff Voltage	28.2V
RoHS Compliant	Yes
Series	1.5KE, TRANSIL™
Termination	Through Hole
DC Rated Voltage	33V
Width	5.3mm
