Schottky RF Diode with a 60V repetitive reverse voltage rating. Features a 15mA average rectified current and a 50mA maximum forward surge current. Encased in a DO-35 package, this through-hole component operates from -65°C to 200°C and is RoHS compliant.
PackageDO-35
Current Rating15mA
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics 1N6263 technical specifications.
General
| Average Rectified Current | 15mA |
| Package/Case | DO-35 |
| Current Rating | 15mA |
| Diameter | 2mm |
| Forward Current | 15mA |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Forward Surge Current (Ifsm) | 50mA |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 60V |
| Max Reverse Current | 200nA |
| Max Reverse Leakage Current | 200nA |
| Max Reverse Voltage (DC) | 60V |
| Max Surge Current | 50mA |
| Mount | Through Hole |
| Output Current | 15mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50mA |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 60V |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics 1N6263 Datasheet
Download the complete datasheet for Stmicroelectronics 1N6263 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

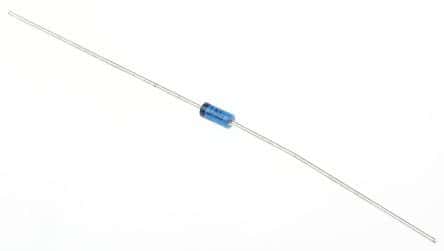

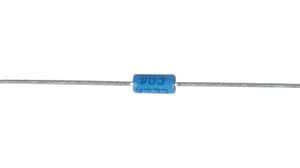

Product Images
