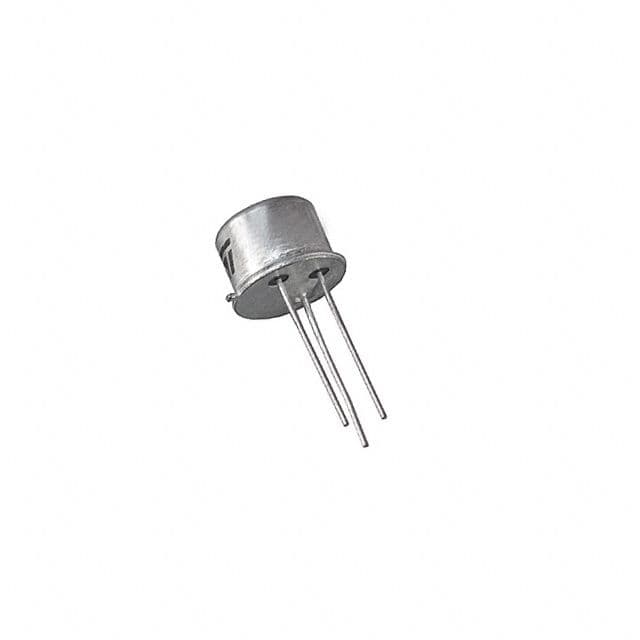

NPN Bipolar Junction Transistor in TO-39 package. Features a maximum collector-emitter voltage (VCEO) of 80V and a maximum collector current of 500mA. Offers a minimum DC current gain (hFE) of 40 and a transition frequency of 70MHz. Operates within a temperature range of -65°C to 175°C with a maximum power dissipation of 800mW. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics 2N1893 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-39 |
| Collector Base Voltage (VCBO) | 120V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 1.2V |
| Collector Emitter Voltage (VCEO) | 80V |
| Collector-emitter Voltage-Max | 5V |
| Current Rating | 500mA |
| Emitter Base Voltage (VEBO) | 7V |
| Gain Bandwidth Product | 70MHz |
| Height | 6.6mm |
| hFE Min | 40 |
| Lead Free | Lead Free |
| Length | 9.4mm |
| Max Breakdown Voltage | 80V |
| Max Collector Current | 500mA |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 800mW |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 2N1893 |
| Transition Frequency | 70MHz |
| DC Rated Voltage | 120V |
| Width | 9.4mm |
| RoHS | Compliant |
