PNP Bipolar Junction Transistor (BJT) in a TO-39 package. Features a maximum collector current of 600mA and a collector-emitter voltage of -60V. Offers a minimum DC current gain (hFE) of 50 and a transition frequency of 200MHz. Operates within a temperature range of -65°C to 175°C. RoHS compliant with through-hole mounting.
Frequency200MHz
PackageTO-39
Current Rating-600mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics 2N2905A technical specifications.
General
| Package/Case | TO-39 |
| Collector Base Voltage (VCBO) | -60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | -1.6V |
| Collector Emitter Voltage (VCEO) | -60V |
| Collector-emitter Voltage-Max | 1.6V |
| Current Rating | -600mA |
| Diameter | 9.4mm |
| Emitter Base Voltage (VEBO) | -5V |
| Gain Bandwidth Product | 200MHz |
| Height | 6.6mm |
| hFE Min | 50 |
| Lead Free | Lead Free |
| Length | 9.4mm |
| Max Collector Current | 600mA |
| Max Frequency | 200MHz |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 600mW |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Polarity | PNP |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 2N2905 |
| Transition Frequency | 200MHz |
| DC Rated Voltage | -60V |
| Width | 9.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics 2N2905A Datasheet
Download the complete datasheet for Stmicroelectronics 2N2905A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

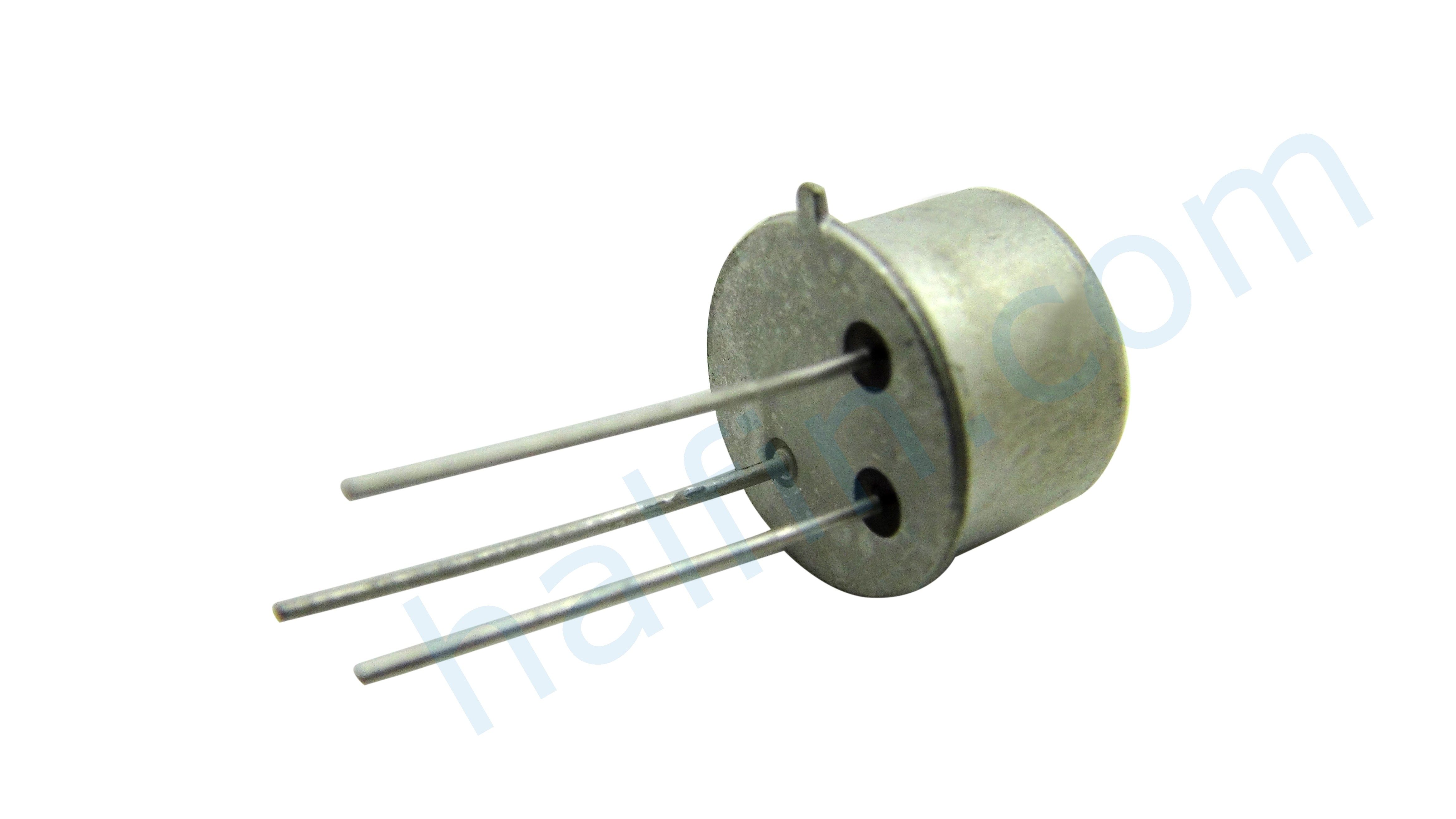

Product Images
