The 74AC245B is an 8-bit inverting transceiver with 3-STATE outputs. It operates over a temperature range of -55°C to 125°C and can handle supply voltages between 2V and 6V. The device is packaged in a 20-pin DIP and is available in a rail/Tube packaging configuration. The 74AC245B is not RoHS compliant and contains lead, making it a non-lead-free component.
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74AC245B technical specifications.
General
| Package/Case | DIP |
| High Level Output Current | 24mA |
| Lead Free | Contains Lead |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Output Type | 3-STATE |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 8.5ns |
| RoHS Compliant | No |
| Series | 74AC |
Compliance
| RoHS | Not Compliant |
Datasheet
Stmicroelectronics 74AC245B Datasheet
Download the complete datasheet for Stmicroelectronics 74AC245B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

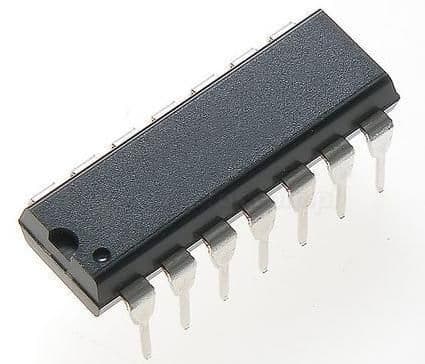

Product Images
