ACT SERIES, QUAD 2-INPUT NOR GATE, PDIP14, PLASTIC, DIP-14
PackageDIP
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Stmicroelectronics 74ACT02B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Stmicroelectronics 74ACT02B technical specifications.
General
| Package/Case | DIP |
| High Level Output Current | 24mA |
| Lead Free | Contains Lead |
| Logic Function | NOR GATE |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 8ns |
| Quiescent Current | 2uA |
| RoHS Compliant | No |
| Series | 74ACT |
| Turn-On Delay Time | 8ns |
Compliance
| RoHS | Not Compliant |
Datasheet
Stmicroelectronics 74ACT02B Datasheet
Download the complete datasheet for Stmicroelectronics 74ACT02B to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

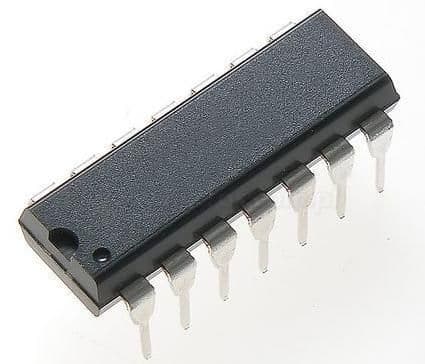

Product Images
