PackageDIP
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74ACT125B technical specifications.
General
Package/Case
DIP
High Level Output Current
-24mA
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Input Lines
4
Number of Output Lines
3
Output Type
3-STATE
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
9ns
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Stmicroelectronics 74ACT125B Datasheet
Download the complete datasheet for Stmicroelectronics 74ACT125B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

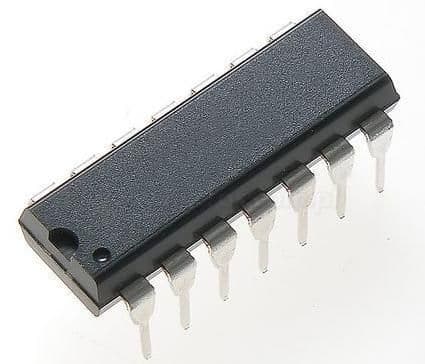

Product Images
