Stmicroelectronics
74ACT74B
ACT SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP14, PLASTIC, DIP-14
PackageDIP
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74ACT74B technical specifications.
General
Package/Case
DIP
High Level Output Current
-24mA
Input Type
SINGLE-ENDED
Logic Function
D-Type, Flip-Flop
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Circuits
2
Number of Input Lines
1
Number of Output Lines
1
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
10ns
RoHS Compliant
No
Series
74AC74
Compliance
RoHS
Not Compliant
Datasheet
Stmicroelectronics 74ACT74B Datasheet
Download the complete datasheet for Stmicroelectronics 74ACT74B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

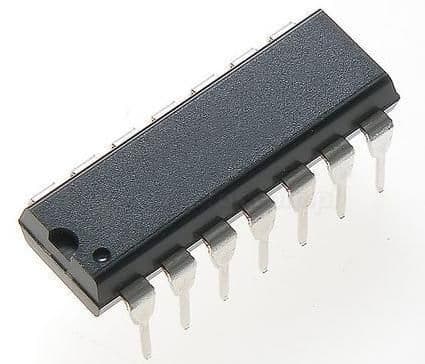

Product Images
