1-bit buffer/driver IC with 3-state output, operating from 1.65V to 5.5V. Features a 4ns propagation delay and 12ns turn-on delay. Supports ±32mA output current and operates across a -55°C to 125°C temperature range. Surface mountable in a SOT-23-5 package with tin, matte contact plating. This RoHS compliant, lead-free component is supplied on tape and reel.
PackageSOT-23-5
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74LX1G126STR technical specifications.
General
| Package/Case | SOT-23-5 |
| Contact Plating | Tin, Matte |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 3 |
| Number of Outputs | 1 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 4ns |
| Quiescent Current | 10uA |
| RoHS Compliant | Yes |
| Series | 74LX |
| Technology | CMOS |
| Turn-On Delay Time | 12ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics 74LX1G126STR Datasheet
Download the complete datasheet for Stmicroelectronics 74LX1G126STR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

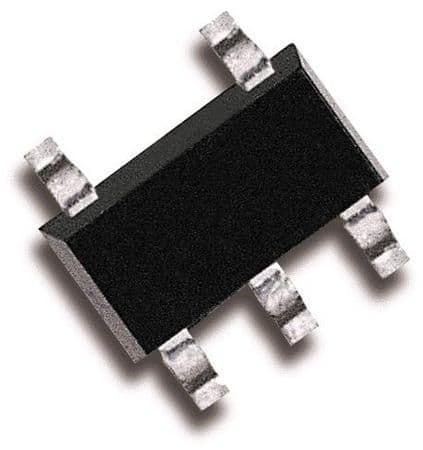

Product Images
