Single-bit, 3-state buffer/driver IC featuring true output. Operates from a 2V to 5.5V supply voltage range with a maximum operating temperature of 125°C. Offers a high-level output current of -8mA and a low-level output current of 8mA. Packaged in a 5-pin SOT-23 surface-mount configuration, this lead-free and RoHS compliant component boasts a propagation delay of 6.5ns.
PackageSOT-23-5
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74V1G126STR technical specifications.
General
| Package/Case | SOT-23-5 |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 3 |
| Number of Outputs | 1 |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 6.5ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74V |
| Technology | CMOS |
| Turn-On Delay Time | 13.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics 74V1G126STR Datasheet
Download the complete datasheet for Stmicroelectronics 74V1G126STR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

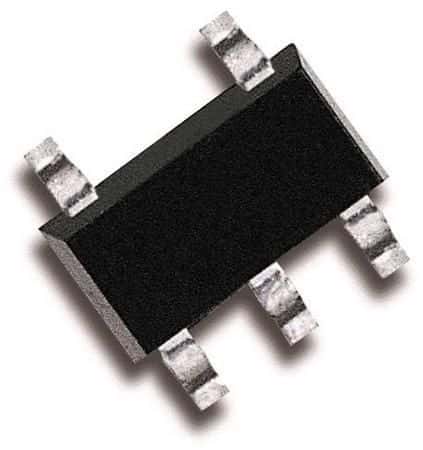

Product Images
