CMOS 2-input XOR gate IC, operating from a 4.5V to 5.5V supply range with a nominal 5V. Features a single circuit with one 2-input XOR gate, providing one output. Offers a maximum output current of 25mA, with typical low-level output current at 8mA and high-level output current at -8mA. Packaged in a 5-pin SOT-23 (PDSO5) for surface mounting, with a propagation delay of 7.5ns. RoHS compliant and lead-free, suitable for operation between -55°C and 125°C.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics 74V1T86STR technical specifications.
General
| Package/Case | SOT-23 |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | XOR GATE, OR GATE |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 25mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 8mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 7.5ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74V |
| Supply Voltage-Nom | 5V |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 7.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics 74V1T86STR Datasheet
Download the complete datasheet for Stmicroelectronics 74V1T86STR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

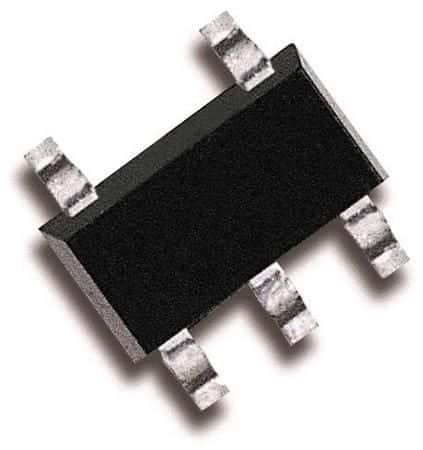

Product Images
