Triple-axis accelerometer with selectable full-scale ranges of ±2g, ±4g, or ±8g. Features SPI and I2C output interfaces and a 500Hz bandwidth. Operates from a 3.6V supply with a typical current draw of 450µA. Designed for surface mounting in a 24-pin QFN package with tin, matte plating. Automotive-grade component, AEC-Q100 qualified, operating from -40°C to 105°C. Supplied on tape and reel in quantities of 3000 units.
PackageQFN
Current450uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics AIS328DQTR technical specifications.
General
Axis
X, Y, Z
Bandwidth
500Hz
Package/Case
QFN
Contact Plating
Tin, Matte
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Supply Voltage
3.6V
Output Type
SPI, I2C
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Supply Current
450uA
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics AIS328DQTR Datasheet
Download the complete datasheet for Stmicroelectronics AIS328DQTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

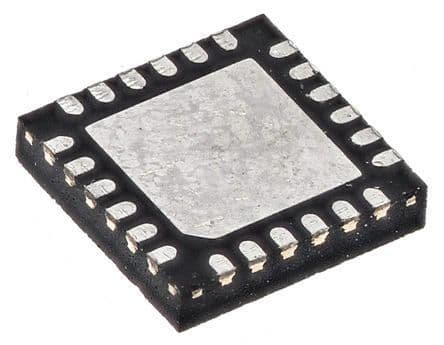

Product Images
