Schottky RF Diode, surface mount, 70V DC rated voltage, 70mA average rectified current, and 1A peak non-repetitive surge current. Features include 2pF capacitance, 10µA max reverse leakage current, and an operating temperature range of -65°C to 150°C. Packaged in a 2-pin SOD-323 (SC) case, this lead-free, RoHS-compliant component is supplied on tape and reel.
PackageSC
Capacitance2pF
Current Rating70mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics BAS70JFILM technical specifications.
General
Average Rectified Current
70mA
Capacitance
2pF
Package/Case
SC
Current Rating
70mA
Forward Current
70mA
Height
1.07mm
Lead Free
Lead Free
Length
1.8mm
Max Forward Surge Current (Ifsm)
1A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Max Reverse Voltage (DC)
70V
Max Surge Current
1A
Mount
Surface Mount
Output Current
70mA
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
1A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
70V
Width
1.45mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BAS70JFILM Datasheet
Download the complete datasheet for Stmicroelectronics BAS70JFILM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

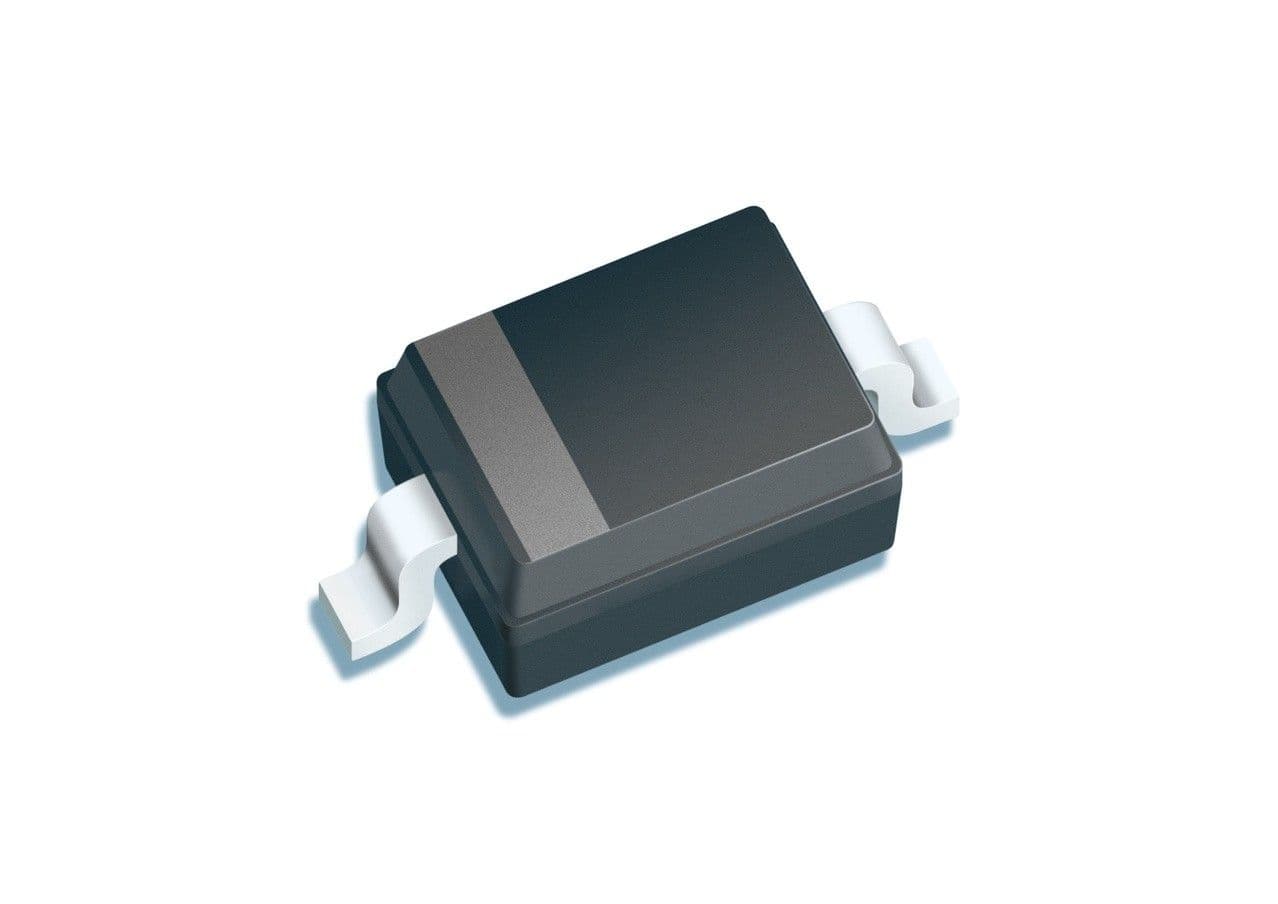

Product Images
