Axial General Purpose Signal Schottky Diode with 40V reverse voltage and 350mA forward current. Features 330mW power dissipation, 20pF capacitance, and 7.5A peak non-repetitive surge current. Packaged in a DO-35 case with isolated connections, this lead-free, RoHS compliant component is designed for through-hole mounting. Operating temperature range is -65°C to 125°C.
PackageDO-35
Capacitance20pF
Current Rating350mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BAT48 technical specifications.
General
Average Rectified Current
350mA
Capacitance
20pF
Case Connection
Isolated
Package/Case
DO-35
Current Rating
350mA
Diameter
2mm
Diode Element Material
SILICON
Forward Current
350mA
Height
2mm
JEDEC-95 Code
DO-35
JESD-30 Code
O-XALF-W2
Lead Free
Lead Free
Length
4.5mm
Max Forward Surge Current (Ifsm)
7.5A
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Power Dissipation
330mW
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
25uA
Max Reverse Leakage Current
25uA
Max Reverse Voltage (DC)
40V
Max Surge Current
2A
Mount
Through Hole
Number of Elements
1
Output Current
350mA
Outside Diameter
1.85mm
Package Quantity
4000
Package Shape
Round
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
7.5A
Peak Reflow Temperature (Cel)
260°C
Polarity
Standard
Power Dissipation
330mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Surface Mount
No
Technology
SCHOTTKY
Terminal Finish
Tin
Terminal Form
Wire
Terminal Position
AXIAL
Termination
Axial
DC Rated Voltage
40V
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BAT48 Datasheet
Download the complete datasheet for Stmicroelectronics BAT48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

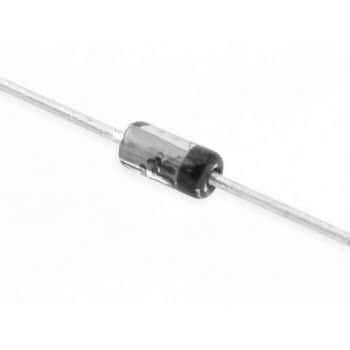

Product Images
