NPN Bipolar Junction Transistor (BJT) for general-purpose, low-noise applications. Features a 45V Collector-Emitter Voltage (VCEO) and 50V Collector Base Voltage (VCBO). Offers a maximum collector current of 100mA and a maximum power dissipation of 300mW. Operates across a temperature range of -55°C to 150°C with a minimum hFE of 200 and a transition frequency of 150MHz. Packaged in TO-18 for through-hole mounting, this RoHS compliant component is supplied in bulk packaging.
PackageTO-18
Voltage50V
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Stmicroelectronics BC107B technical specifications.
General
| Package/Case | TO-18 |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 600mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Collector-emitter Voltage-Max | 600mV |
| Emitter Base Voltage (VEBO) | 6V |
| Height | 5.3mm |
| hFE Min | 200 |
| Lead Free | Lead Free |
| Length | 5.8mm |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Polarity | NPN |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 150MHz |
| Voltage | 50V |
| Width | 5.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BC107B Datasheet
Download the complete datasheet for Stmicroelectronics BC107B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

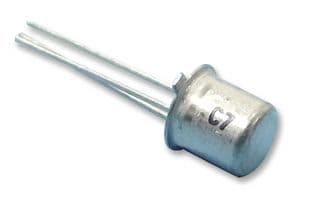

Product Images
