NPN Darlington transistor in TO-220 package, featuring 80V collector-emitter breakdown voltage and 8A continuous collector current. Offers a maximum power dissipation of 60W and a low collector-emitter saturation voltage of 2V. With a minimum hFE of 750 and a wide operating temperature range from -65°C to 150°C, this RoHS compliant component is designed for through-hole mounting.
PackageTO-220
MountingThrough Hole
PolarityNPN
Power60W
Quick Jump:
Technical Specifications
Stmicroelectronics BDX53B technical specifications.
General
| Package/Case | TO-220 |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 2V |
| Collector Emitter Voltage (VCEO) | 80V |
| Collector-emitter Voltage-Max | 2V |
| Contact Plating | Tin |
| Continuous Collector Current | 8A |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 9.15mm |
| hFE Min | 750 |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Collector Current | 8A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 60W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Power Dissipation | 60W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BDX53B Datasheet
Download the complete datasheet for Stmicroelectronics BDX53B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

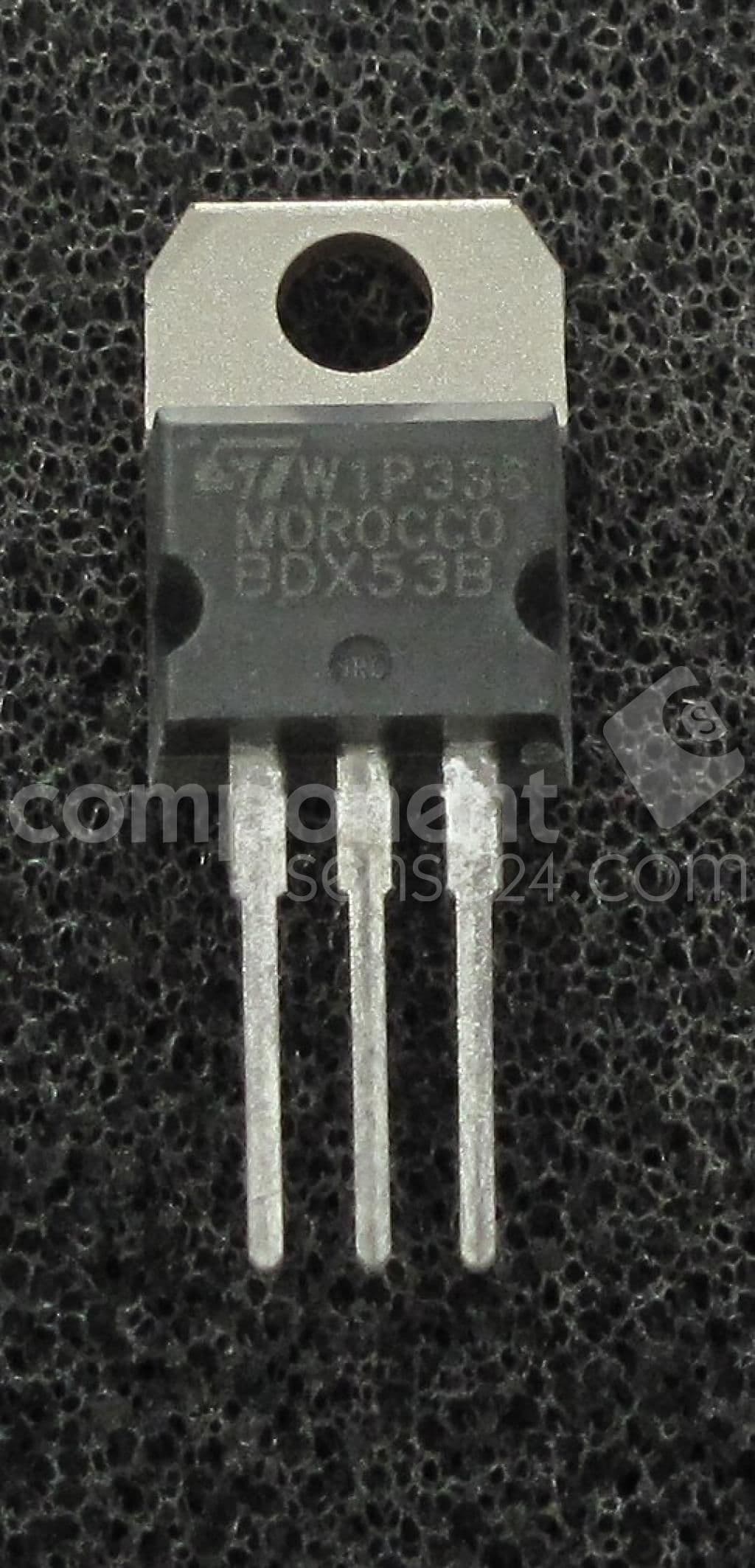

Product Images
