PackageTO-220-3
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BTA06-600BWRG technical specifications.
General
| Package/Case | TO-220-3 |
| Contact Plating | Gold |
| Current Rating | 6A |
| Height | 15.9mm |
| Hold Current | 50mA |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 6A |
| RoHS Compliant | Yes |
| Series | Snubberless™ |
| DC Rated Voltage | 600V |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BTA06-600BWRG Datasheet
Download the complete datasheet for Stmicroelectronics BTA06-600BWRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

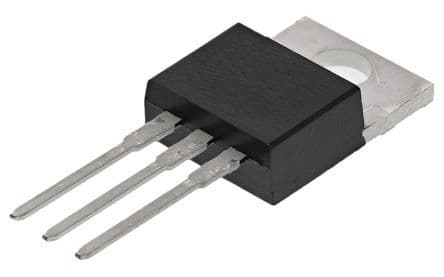

Product Images
